MV Cables Uses: Medium-voltage cables are utilised in industry, power production, power transfer and distribution, and wind farms because they are exceptionally reliable. Furthermore, these medium-voltage cables are employed in public transportation infrastructure, such as railway and metro lines, to provide power. Our medium-voltage cables can be made of special plastics if needed, and they have a fire rating, allowing them to be installed indoors and in tunnels.

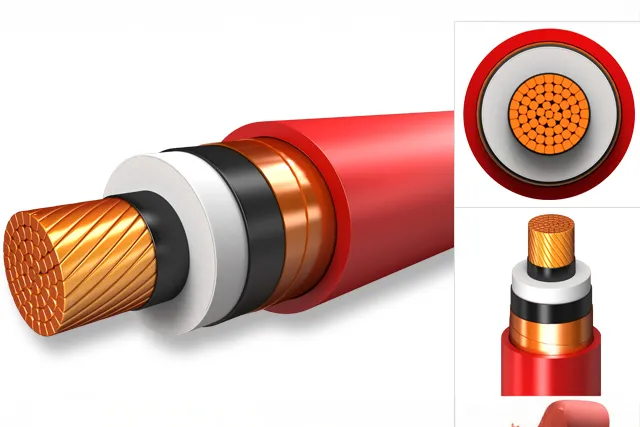

MV Cable structure and materials : The sizes and types of medium voltage cable designs vary. The structure is significantly more complicated than that of a low-voltage cable. The distinctions between medium and low voltage cables are not only in the manner they are built, but also in the production techniques and raw materials used.
In fact, the insulation methods for medium voltage cables differ significantly from those for low voltage cables: Instead of one layer, the medium voltage cable has three: conductor screen, insulation material, and insulation screen. In the case of medium voltage, CCV line is used instead of standard horizontal extrusion machines, as it is in the case of low voltage. Even if the insulating material has the same name as low voltage cables (for example, XLPE), the source material is different to provide more pure insulation. Colouring masterbatch, which is used for core identification in low voltage cables, is not allowed. The metallic screen, which is usually seen in medium voltage cables, is only employed in low voltage cables for certain applications. Medium voltage cable goods, like all other cable products, require extensive type testing to analyse the individual components as well as the entire cable. Electrical, mechanical, material, chemical, and fire characteristics of medium voltage cables are all tested
MEDIUM VOLTAGE ELECTRICAL CABLE BENEFITS
- Extremely adaptable and long-lasting
- Installation is simple.
- Flex life is better, and it lasts longer.
- Designed to endure a lot of punishment.
- Abrasion, oil, impact, ozone, and ripping resistance
- Pulling, twisting, and tension resistance are all improved with the reinforced jacket.
- Terminations are fitted at the factory (can be custom)
- Cut to the precise length you require
- Safety-tested electrically (electrical testing report should be provided)
- Copper conductors that have been tinned for enhanced flexibility
- Moisture, heat, and ozone-resistant insulation
- For industrial robustness, braided tin copper shielding is used.
- Abrasion, ripping, and cut resistance are all features of this heavy-duty outer jacket.
In the event of a natural disaster or unpredictably long power outages, primary power is provided by a mobile substation.
- Power supply for substation construction
- Distribution of power to remote places
- Applications ranging from 5kV to 35kV are available.
- Substations are places where electricity is generated.
- Transformers are a series of robots that transform
- Sets of medium voltage generators
